Flexineb E3 Cup

The Flexineb E3 Cup is the heart of the Flexineb E3. Liquids which are intended to act in the lungs are put into the Flexineb E3 cup and are converted into a fine mist to be inhaled by the horse. It is a consumable part with a lifespan that depends on the liquids and volumes nebulized by the cup and how well the cup is maintained.

The Flexineb E3 Cup will hold 10ml of liquid but is expandable to 30ml using the Flexineb Cup Volume Extender.

The liquid is converted into a fine mist (aerosol) through vibration of the mesh/membrane (90.000 times per second) acting like a micro pump.

The performance and life of the Flexineb E3 Cup is highly dependent on how well it is maintained between uses. The type of drug or liquid used also influences the lifespan as the technology must pump the drug or liquid through tiny holes to form the aerosol.

If a liquid with a high viscosity (e.g. like honey) is placed in the Flexineb E3 Cup it may not nebulise. Dilution may help if the liquid is water based. If a liquid is oil-based dilution will not help.

Another factor that will affect performance is if the drug or liquid used is a Solution or Suspension.

Solution type drugs have their active agent completely dissolved in the liquid (like sugar in coffee).

Suspension type drugs have their active agent suspended in the liquid in the form of tiny solid particles (like sand in water).

Grey: The grey E3 cup is the universal E3 cup which is compatible with most liquids used innebulization.

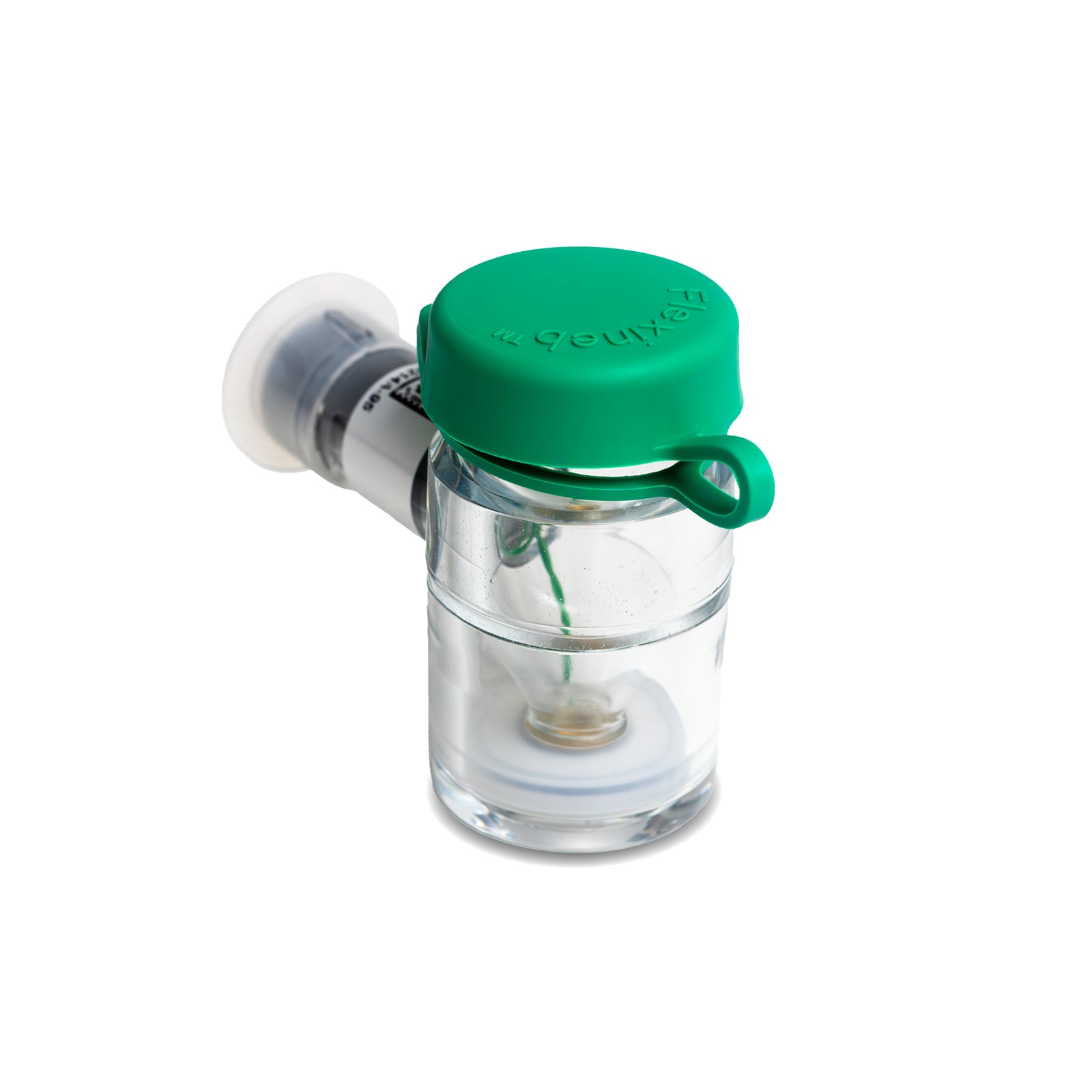

Green: The green E3 cup is suitable for use with thicker liquids which are more difficult to nebulize.

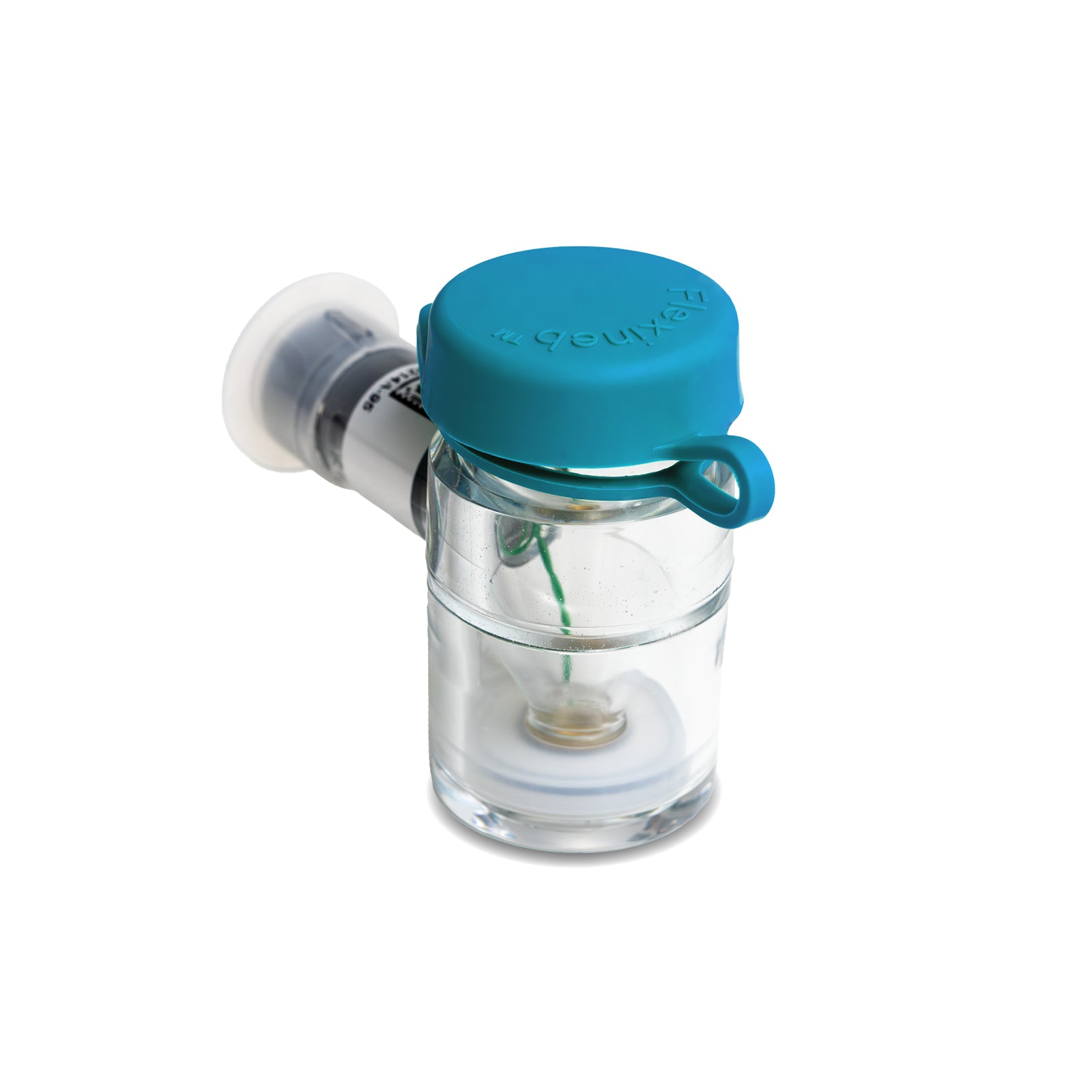

Blue: The blue E3 cup is suitable for use with thin liquids and smaller doses.

Clean the Flexineb E3 Cup after each use
Always protect the electronics using the clear cap
Clean with distilled water and one drop of mild dish soap
Rinse thoroughly and air dry
Never use sharp objects
Do not use harsh or chemical cleaners

The Flexineb E3 cup is a consumable part, the lifespan is highly dependent on the volume and variants of liquids nebulized by the cup.
The average lifespan of the cup is up to 100 uses.*
* based on nebulizing 10ml 0.9% saline solution per use – this equals 1000ml in total.
* If liquids other than 0.9% saline solution are used, the cup’s lifespan may be reduced by up to 50%.

Flow Rate:
Typically 1.0 ml/min with 0.9% NaCl solution. The flow rate is very dependent on the solution nebulized.

Aerosol Droplet Size:
Flexineb E3 generates aerosol droplets in the respirable range for delivery to the airways of the horse. The aerosol droplet size is highly dependent on the solution nebulized.

Flexineb E3 Cup Volume:
The Flexineb E3 Cup will hold 10ml of liquid but is expandable to 30ml using the Flexineb Cup Volume Extender supplied. The Flexineb E3 Controller has a timer function therefore, if the Flexineb Cup Volume Extender is used the Controller will need to be re-started to complete the nebulization.

The Flexineb E3 cup is a consumable part, the lifespan is highly dependent on the volume and variants of liquids nebulized by the cup and how well it is maintained therefore it is not covered by warranty.
